QMA Male Connector Crimping Type For Rg316 Coaxial Cable
QMA series connectors are high-frequency radio frequency coaxial connectors. Their performance and size are based on the SMA design, featuring fast connection and high stability. The shell material is mostly brass, and the contact material is phosphor bronze. The surface is usually treated with gold plating or ternary alloy electroplating. Some QMA connectors have IP67 protection level, which can prevent dust and water. They are widely used in communication base stations, aerospace, defense electronics, and industrial testing equipment, etc. In the construction of 5G base stations, QMA connectors are widely adopted as key radio frequency components.
Product display
Product Performance Details
| Product model |
QMA-C-J-1.5 |
Dielectric constant |
≥5000MΩ |
| Characteristic impedance |
50 ohm |
Body material |
Nickel-plated brass |
| Frequency range |
DC-6GHz |
Central conductor |
Gold-plated brass |
| Voltage standing wave ratio |
≤1.25 |
Insulator material |
PTFE |
| Medium pressure resistance |
≥1000V RMS ,50hz, at sea level |
Durability |
≥500 Cycles |
| Contact resistance |
Center contact:≤3mΩ Outer contact:≤2.5mΩ |
Temperature range |
-45℃~+125℃ |
Physical product display

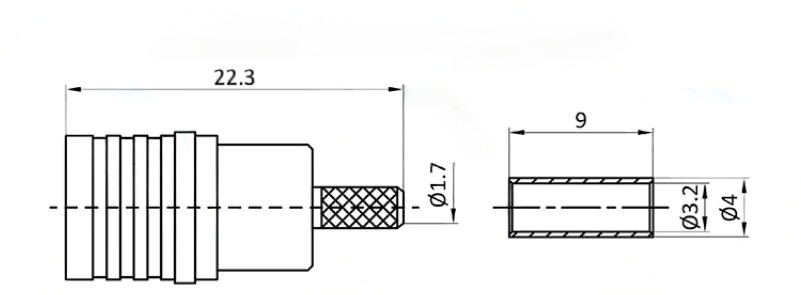

Product external dimensions
Related product recommendations
Display of Strength
Office areaProduction Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
