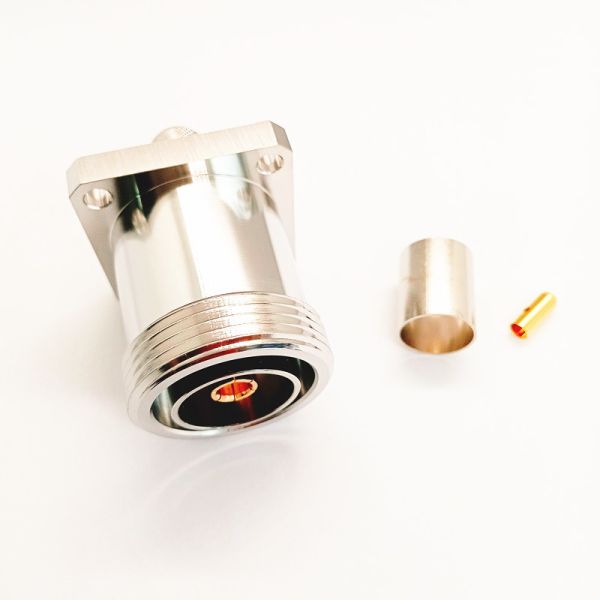

RF Connector 7/16-C-KF-7 DIN 4 Holes Female Flange 24.7*24.7Mount Crimp Type For LMR400 Cable
7/16‑C‑KF‑7 is a 50Ω 7/16 DIN female flange‑mount RF connector , operating from DC to 7.5 GHz with low VSWR, ultra‑low PIM ≤ –155 dBc, and high power handling up to 3 kW. Featuring precision CNC machining, corrosion‑resistant metal plating, PTFE dielectric and IP67 environmental protection, it ensures stable, low‑loss signal transmission in extreme temperatures and harsh outdoor conditions. Designed for 4G/5G base stations, broadcast, microwave and satellite communication systems, it offers high reliability, long mechanical life and broad compatibility for professional RF equipment.
Product display
Product Performance Details
| Product model |
7/16-C-KF-7 |
Dielectric constant |
≥10000MΩ |
| Characteristic impedance |
50 ohm |
Body material |
Nickel-plated brass |
| Frequency range |
DC-6GHz |
Central conductor |
Gold-plated brass |
| Voltage standing wave ratio |
≤1.35 |
Insulator material |
PTFE |
| Medium pressure resistance |
≥2500V RMS ,50hz, at sea level |
Durability |
≥500 Cycles |
| Contact resistance |
Center contact:≤1.5mΩ
Outer contact: ≤0.4mΩ
|
Temperature range |
-45℃~+125℃ |
Physical product display
Product external dimensions

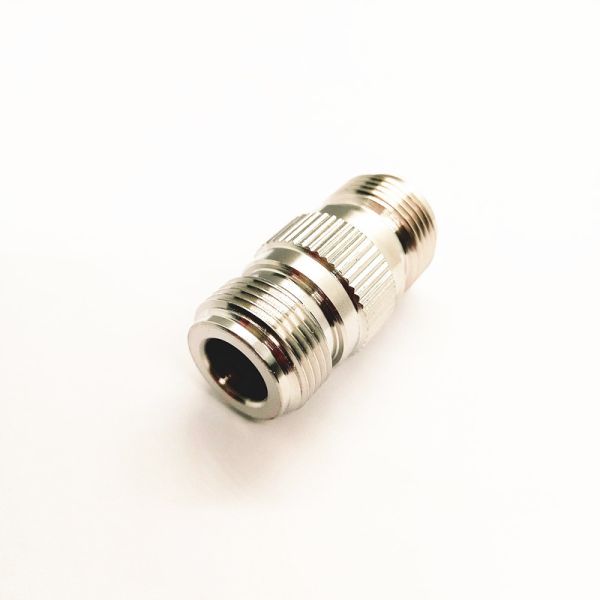

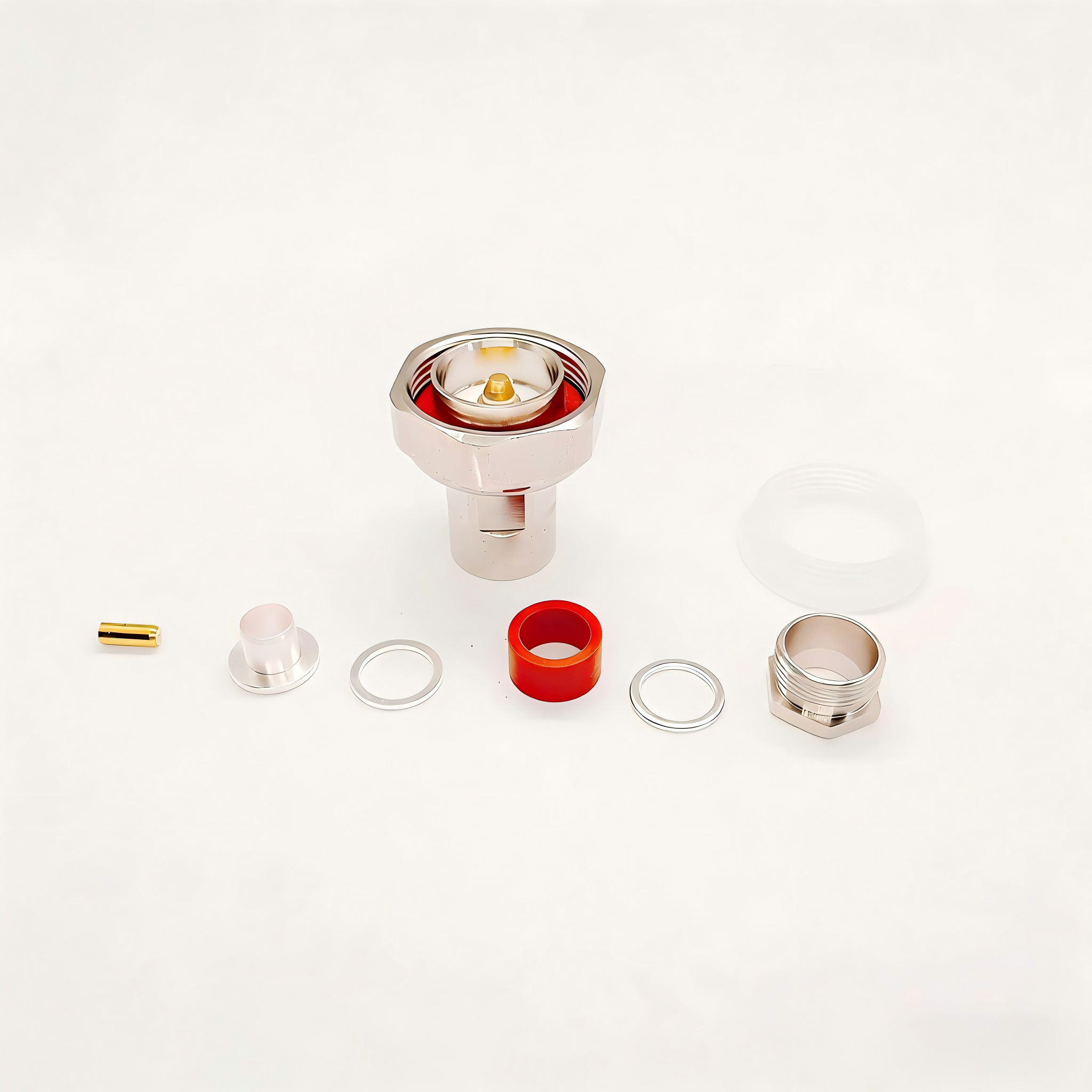

Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
