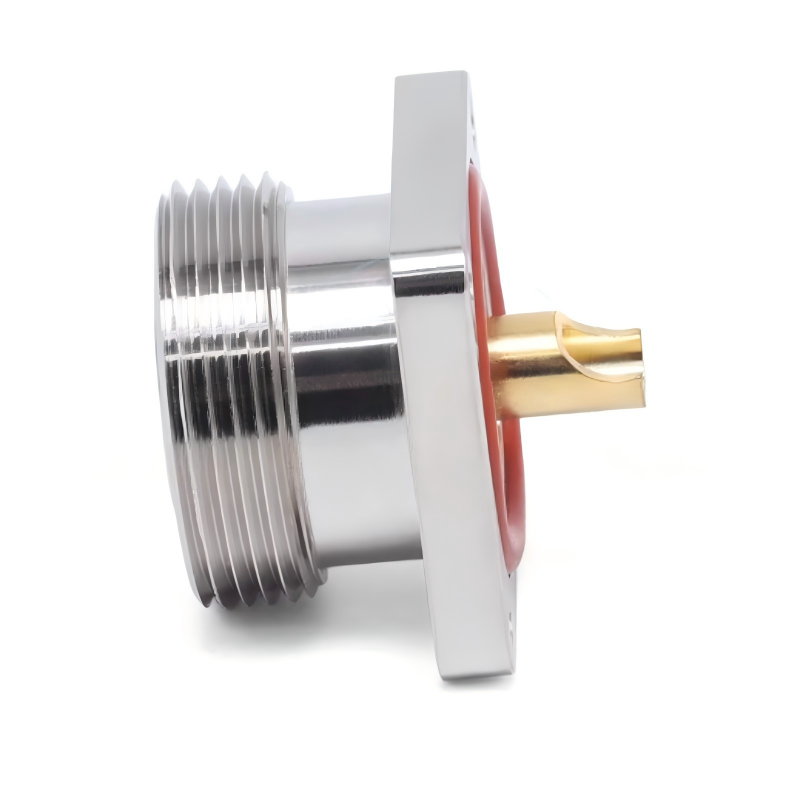

7/16 DIN L29 Female RF Connector 4-Hole Flange Mount Coaxial Adapter For Base Station & Radar
7/16 DIN (L29) female RF coaxial connector features a 4-hole flange mount design, engineered for high-power telecommunication applications including base stations and radar systems. With a rated voltage of 2700V RMS (50Hz, sea level) and an insulation withstand voltage of ≥4000V RMS, it delivers reliable electrical performance and safety. Built with low passive intermodulation (Low PIM) characteristics, it ensures stable signal transmission in high-frequency scenarios. The integrated waterproof sealing ring enhances durability in harsh outdoor environments, making it an ideal choice for professional RF engineers and system integrators seeking robust, long-lasting connectivity solutions.
Product display
Product Performance Details
| Product model |
7/16-KF-1 |
Contact resistance |
Center contact:≤1.5mΩ(DIN) 0.4mΩ(N) Outer contact:≤1mΩ(DIN) 0.2mΩ(N) |
| Characteristic impedance |
50 ohm |
Body material |
Gold-plated brass |
| Frequency range |
DC-6GHz |
Insulator |
PTFE |
| Voltage standing wave ratio |
≤1.25 |
Central conductor |
Gold-plated beryllium copper |
| Medium pressure resistance |
≥2500V RMS ,50Hz, at sea level |
Temperature range |
-45℃~+125℃ |
| Dielectric constant |
≥5000MΩ |
Durability |
≥500 Cycles |
Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
