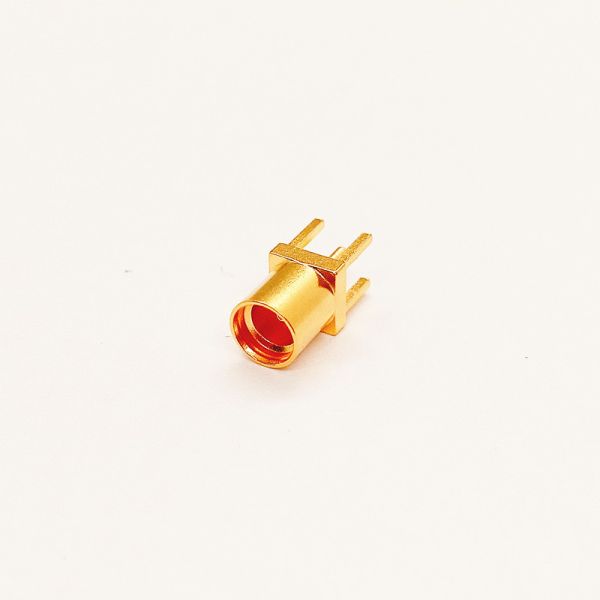

MMCX-KHD PCB Mount RF Coaxial Connector Female Jack Through Hole Gold-Plated
MMCX-KHD RF coaxial connector is a compact, high-performance female jack designed for PCB through-hole mounting. Featuring a full gold-plated brass body and precision-engineered pin terminals, it delivers excellent electrical performance across a wide frequency range (DC to 10GHz), with low insertion loss and high return loss to ensure reliable signal integrity in high-frequency applications. Its miniaturized form factor and robust through-hole structure make it ideal for space-constrained designs, while the secure interface enables stable mating and unmating with over 500 mating cycles. Operating within a temperature range of -40°C to +85°C, this gold-plated MMCX connector is widely used in wireless communication, GPS, Wi-Fi, IoT modules, and portable RF devices, providing a durable, space-efficient interconnection solution for critical high-frequency systems.
Product display
Product Performance Details
| Product model |
MMCX-KHD |
Dielectric constant |
≥5000MΩ |
| Characteristic impedance |
50 ohm |
Body material |
Nickel-plated brass |
| Frequency range |
DC-6GHz |
Central conductor |
Gold-plated brass |
| Voltage standing wave ratio |
≤1.25 |
Insulator material |
PTFE |
| Medium pressure resistance |
≥1000V RMS ,50hz, at sea level |
Durability |
≥500 Cycles |
| Contact resistance |
Center contact:≤3mΩ
Outer contact:≤2.5mΩ |
Temperature range |
-45℃~+125℃ |
Physical product display
Product external dimensions
